RS365 RS395 Rs 385 Dc Motor 6VDC 12VDC 24VDC 15.8RPM GM58

Product Categories

Ningbo Lino Electric Accessories Co., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: RS365 RS395 Rs 385 Dc Motor 6VDC 12VDC 24VDC 158RPM GM58
Brand: LINO
Price: 1 USD

Brand Name : LINO

Model Number : GM58

Certification : ROHS

Place of Origin : ZHEJIANGNINGBO

MOQ : 1K

Price : The price ranges from 30 to 50 RMB per unit. The specific model requirements vary

Payment Terms : T/T

Supply Ability : 100,000 units per month

Delivery Time : 30work days

Packaging Details : Carton with pallet

Voltage range : 6VDC,12VDC,24VDC

Direction of rotation : CW, CCW

Motor : RS365,RS385,RS395

Shaft : Customizable, Rear shaft is available

Contact Now

DC GEAR MOTOR GM58

Products' type:	DC geared motor
Model:	GM58
Sort:	Pear shape DC geared motor
Typical applications:	Valve,coffee machine, coin machine,communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc…





Weight	250g (approx)

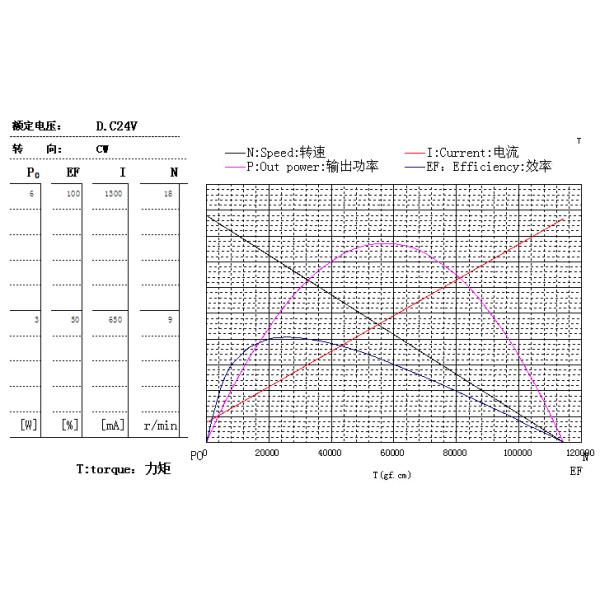

MODEL	VOLTAGE	AT NO LOAD		AT MAXIMUM EFFICIENCY				AT STALL
	VOLTAGE	SPEED	CURRENT	SPEED	CURRENT	TORQUE		TORQUE		CURRENT
	VDC	RPM	A	RPM	A	mN.m	kg.cm	mN.m	kg.cm	A
GM58499-360	24	15.8	0.1	13.1	0.275	1911	19.500	11172	114.000	1.12
Base motor option	RS360,RS365,RS380,RS385,RS390,RS395,RF500,RF520
Gear ratio option	195.5, 499,844,1036.5,2073, 2850
Note	The specifications and output shaft can be changed as customer's request.
Packing detail	Carton, Size: 52X36X36CM;100pcs/carton; G.W:28Kg.

RS365 RS395 Rs 385 Dc Motor 6VDC 12VDC 24VDC 15.8RPM GM58
